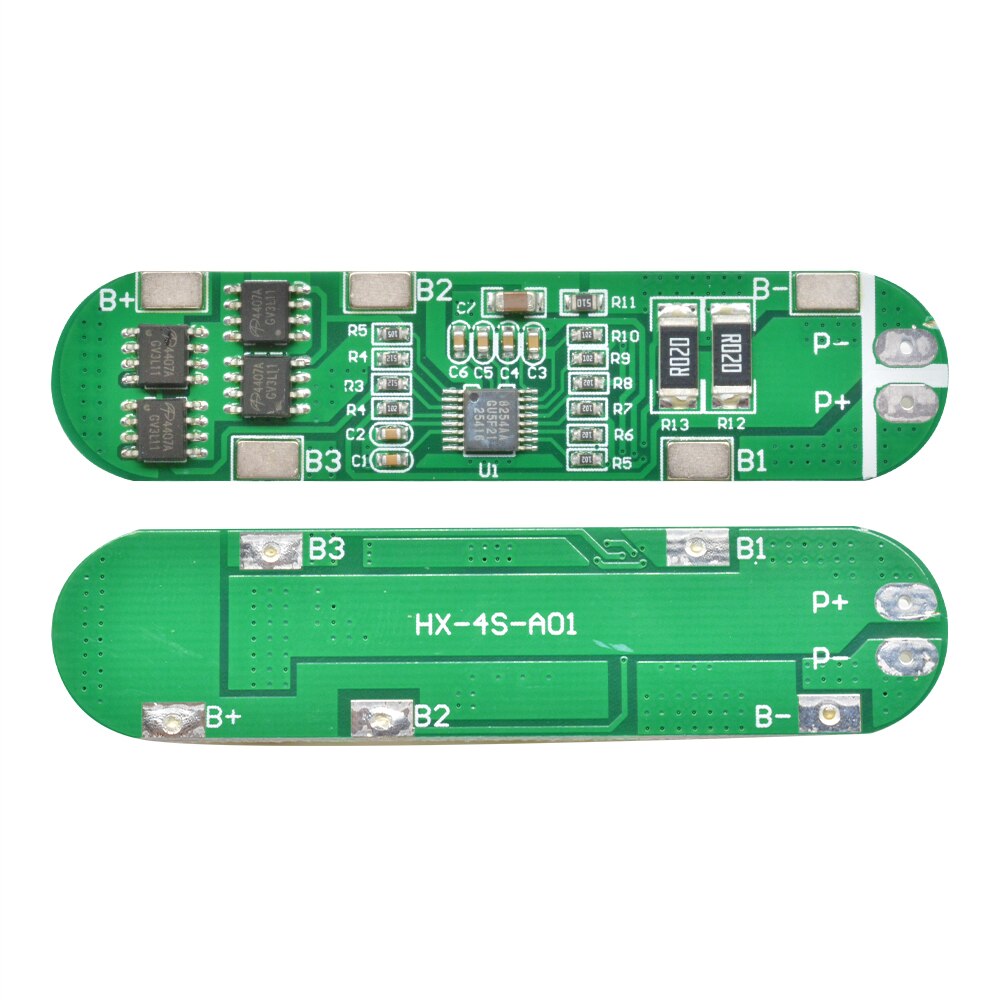

 4S 6A 14.8V BMS Protection Board For 4 Pack 18650 Battery Cell.jpeg)
 4S 6A 14.8V BMS Protection Board For 4 Pack 18650 Battery Cell.jpeg)
 4S 6A 14.8V BMS Protection Board For 4 Pack 18650 Battery Cell.jpeg)
Charging Voltage: 16.8V-17V
Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
Upper Limit Operating Current: 6-8A
Upper Limit Instantaneous Current: 12A
Quiescent Current: less than 30uA
Internal Resistance: less than 100mΩ
Effective Life: more than 50,000 hours
Operating Temperature: -40- +50 degrees
Storage Conditions: -40- +80 degrees
Size: 72* 17* 3mm
Status: Stock Available
Regular Price: ৳260 BDT
Discount Price: ৳260 ৳400
As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.
