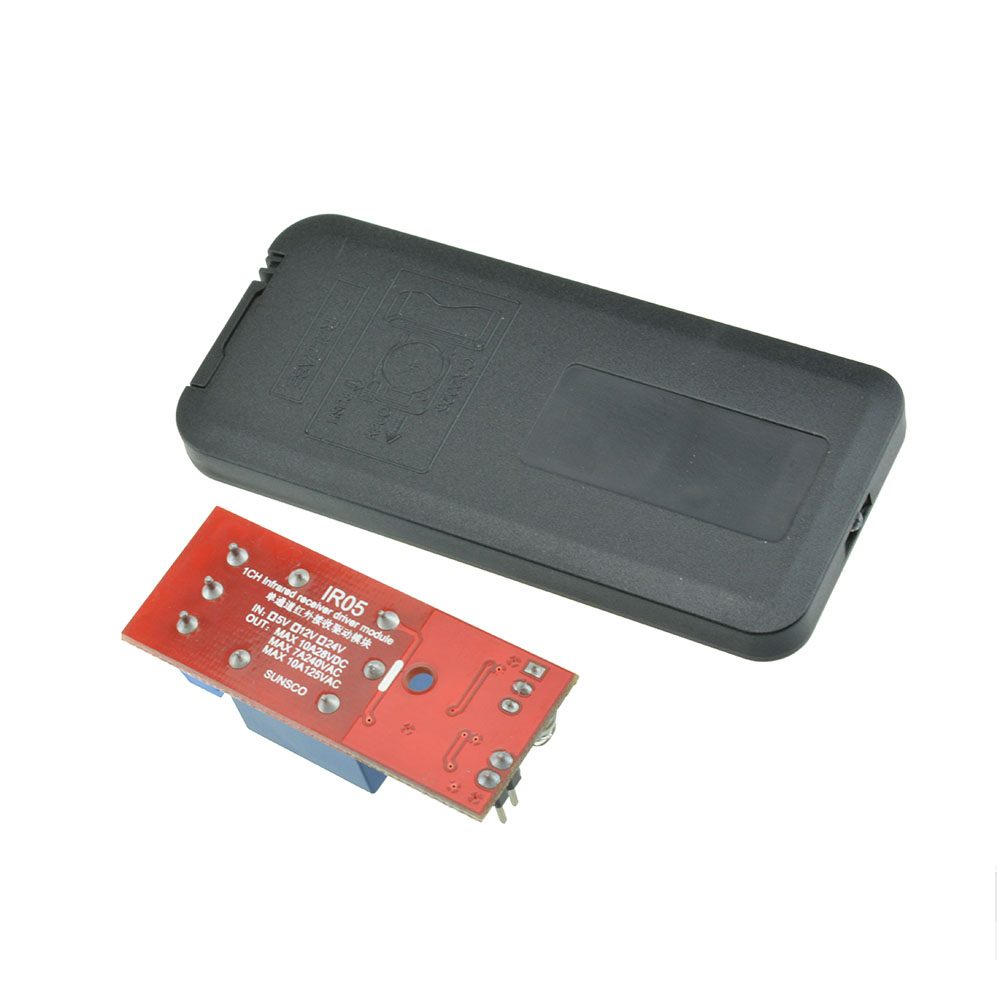

DC 5V 1 Channel Relay Module Infrared IR Remote Switch Control 1 CH Relay Driving Board Controller for Electronic DIY Products

LED indicator

With 3mm fixed screw holes, it's easy to install.

Module Interface: VIN+ power supply anode 9-13V, GND- power supply cathode

The middle of three ports is public, it can be normally open and normally closed output with the others

Status: Stock Available

Regular Price: ৳390 BDT

Discount Price: ৳390 ৳450

Specification

The circuit is insulated before the relay's output and input.

Remote Controller make use of UPD6122 chip and NED coding format, frequency is 38K.

Remote Controller User Code: OxOOFF Key Value: "ON"---40, "OFF"---19

Battery: CR2025
