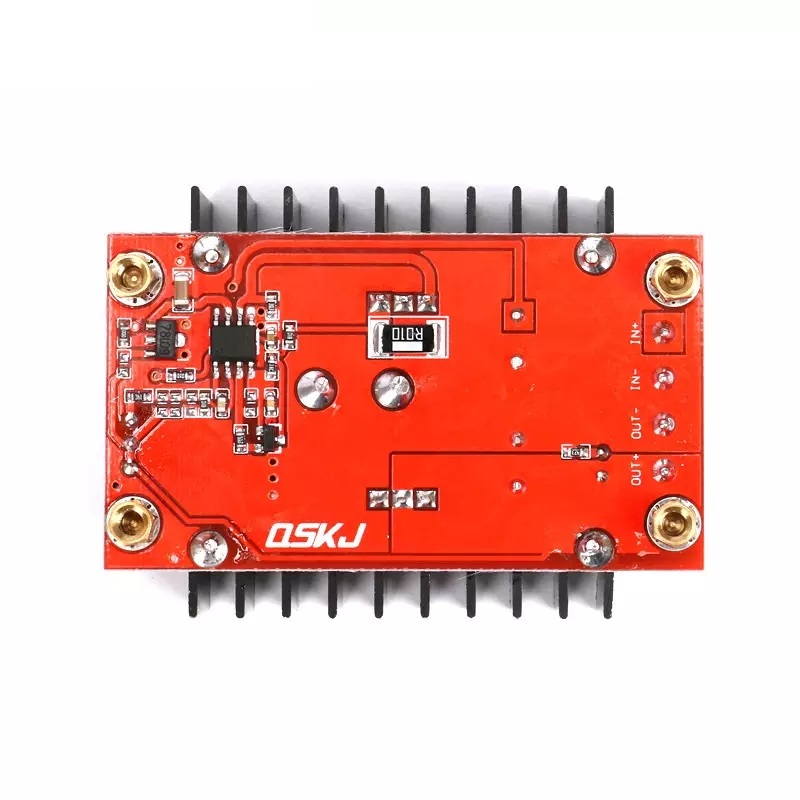

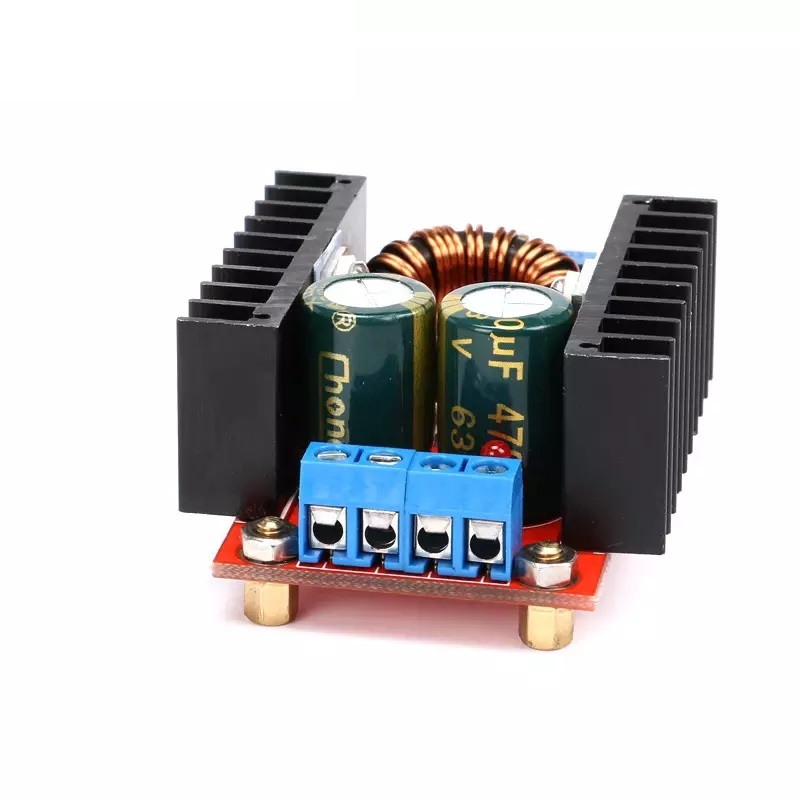

DC-DC Converter 10-32V to 35-60V 120W Step up Boost Adjustable Voltage Charger Power Supply Module Products

With an airfoil radiator, the cooling effect is improved significantly, greater output power (plus fan the max power can up to 130W).

Low output ripple, when output in 48V, the output ripple can control in about 1%.

Input voltage:10-32V, Output voltage default setting is about 48V.

Status: Stock Available

Regular Price: ৳440 BDT

Discount Price: ৳440 ৳600

Specification

1).Module Properties Non-isolated step-up module

2).Input Voltage DC 10-32 V

3).Output Voltage DC 35-60 V (adjustable)

4).Maximum Input Current 16a(Higher than 10A need cooling)

5).Maximum output Current: 5 A

6).Power(MAX, Natural cooling),Strengthen cooling (MAX, Actual power)

7).Efficiency typical 90 %(For reference)

8).Output ripple 2%20M bandwidth

9).Operating Temperature Industrial, (environmental temperature, more than 40 degrees, please reduce power to use, or enhance cooling)

10).Full Load temperature rise45 Celsius

11).No-load Current Typical 25mA

12).Load Regulation ± 0.5%

13).Voltage Regulation rate± 0.5%

14).Dynamic response speed5% 200uS

15).Size 65mm x 47mm x 23.5mm

16).Short-circuit Protection None

17).Input Reverse Protection None
