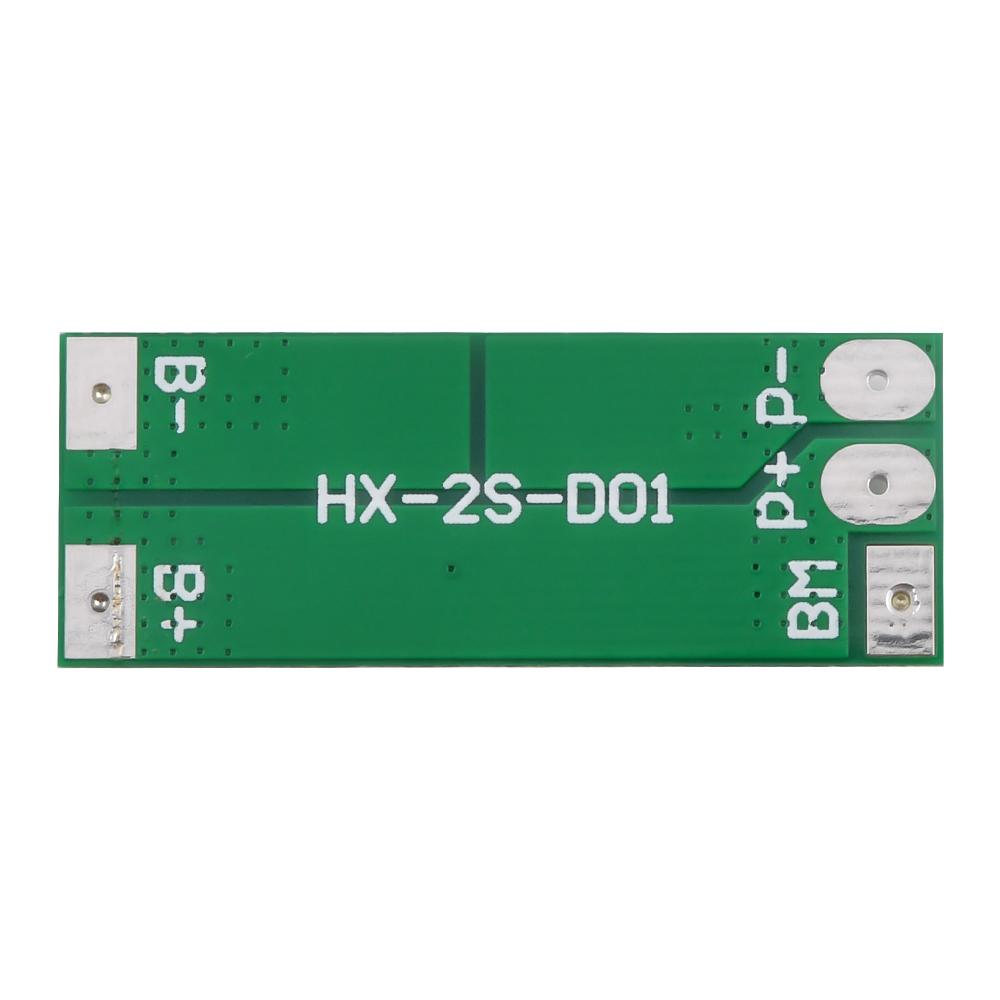

Lifepo4 BMS 2S 10A 6.4V Battery Charge Protection Board MOS BMS PCM For Power Bank Cell Pack Charging Module


Model: HX-2S-DO1 Size: 41*16*3.5mm

Maximum operating current: 8A

Upper limit instantaneous current: 10A

Overcharge voltage range: 3.65v±0.05v

Over-discharge voltage range: 2.0v±0.05v

Quiescent current: less than 30uA

Charging voltage: 7.2v-8.4v

Short circuit protection: can be protected,

delayed self-recovery.

Status: Stock Available

Regular Price: ৳210 BDT

Discount Price: ৳210 ৳320

1

Specification

Description

Model: HX-2S-DO1 Size: 41*16*3.5mm

Maximum operating current: 8A

Upper limit instantaneous current: 10A

Overcharge voltage range: 3.65v±0.05v

Over-discharge voltage range: 2.0v±0.05v

Quiescent current: less than 30uA

Charging voltage: 7.2v-8.4v

Short circuit protection: can be protected,

delayed self-recovery.
