Description

A pin header (or simply header) is a form of electrical connector. A male pin header consists of one or more rows of metal pins moulded into a plastic base, often 2.54 mm (0.1 in) apart, though available in many spacings.[1] Male pin headers are cost-effective due to their simplicity. The female counterparts are sometimes known as a female socket header, though there are numerous naming variations of male and female connectors.

Features:

This pin header is an ideal socket connector for a PC board, to construct a pin-socket or an integrated circuit socket.

Design is a 40-pin header with tin pins spaced 0.1″ (2.54mm) round pin connector.

These are a longer version of our standard break away headers.

The plastic separator can be slid up or down to accommodate your needs.

You will get a row of 40 pins. They can be broken or snipped to length.

This is a 40 pins single row female berg strip/header. It can be cut into any desired size with the wire cutter.

The pitch for this header is standard 2.54mm.

Specifications:

Color:Black

Gender of Connector: Male

Type of Row:Single Row

Type of Connector:Straight

Number of Pins: 40.

Pin Spacing: 2.54 mm.

Strip Length: 80.60 mm.

Strip width : 2.49 mm.

Strip Height: 4.4 mm(Only Plastic Part).

Strip Height: 6.8 mm (with contact Points).

Pin height: 2.2mm.

Package Include:

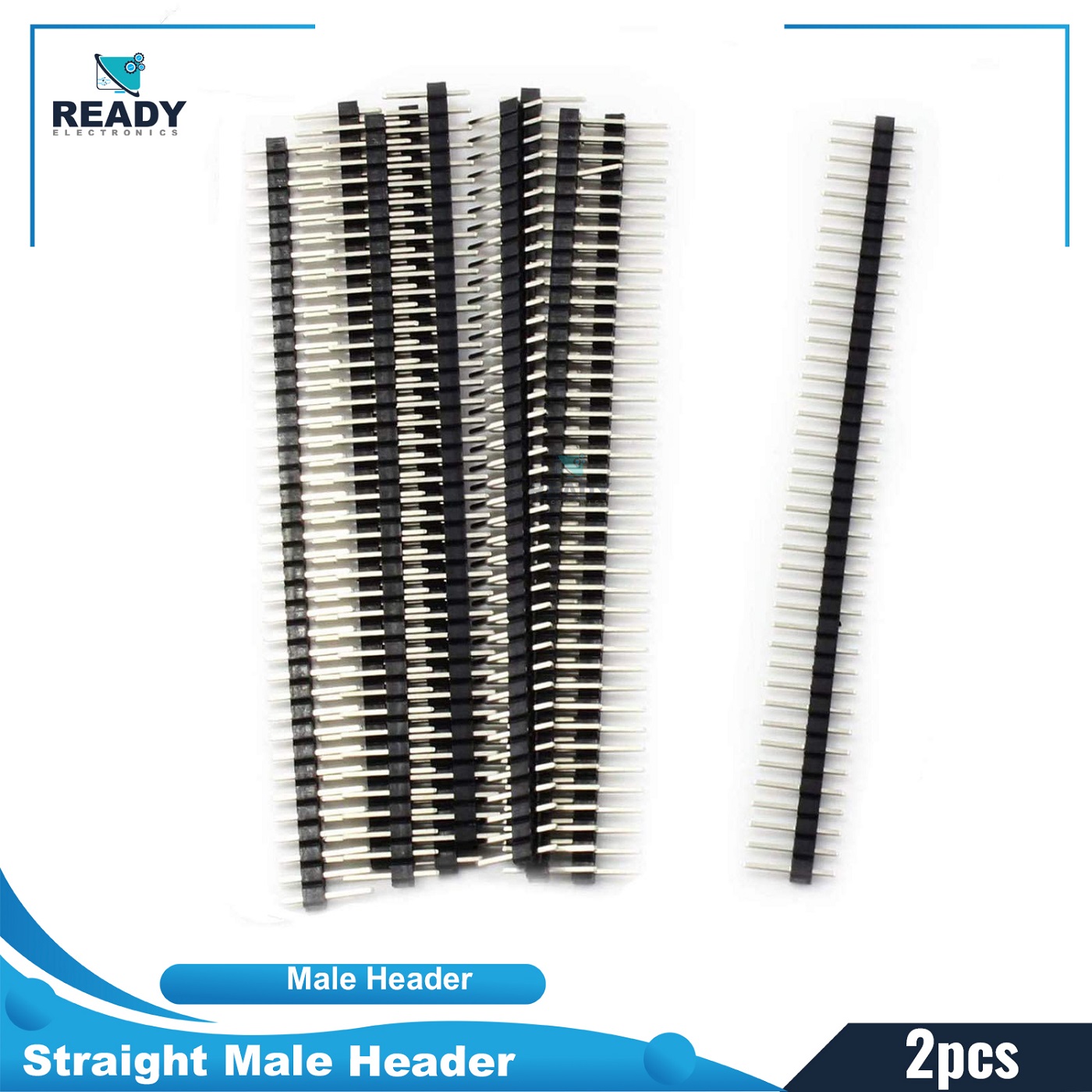

1 x Male Header 40×1 Straight Pins Single Row 2.54mm Pitch Pin Male Header Connector Strip
