 Motor Drive Shield Expansion Board with chip L293D Duemilanove and Mega2560 for UNO.jpeg)
 Motor Drive Shield Expansion Board with chip L293D Duemilanove and Mega2560 for UNO.jpeg)
 Motor Drive Shield Expansion Board with chip L293D Duemilanove and Mega2560 for UNO.jpeg)

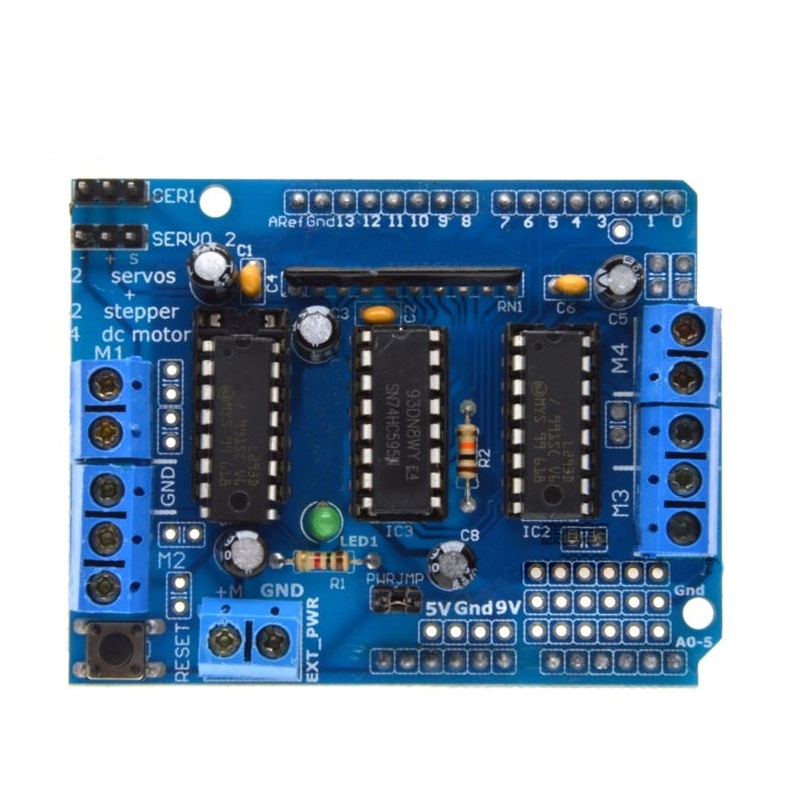

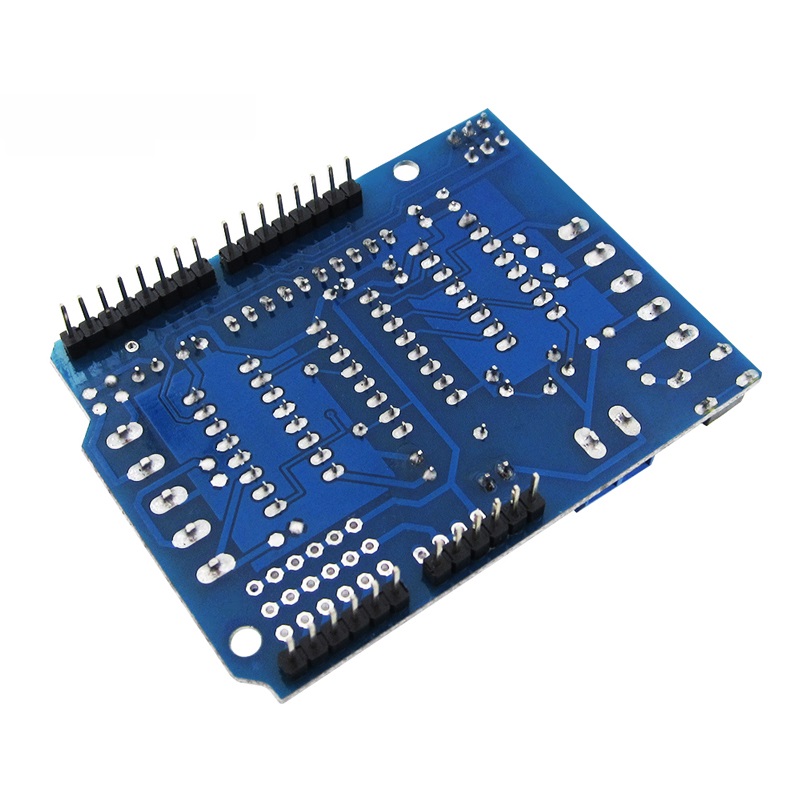

L293D Dual Motor Shield has two L293D motor drivers.
one 74HC595 shift register.
The shift register expands 3 pins of the Arduino to 8 pins to control the direction for the motor drivers.
The output enable of the L293D is directly connected to PWM outputs of the Arduino.
Status: Stock Available
Regular Price: ৳190 BDT
Discount Price: ৳190 ৳500
L293D is a monolithic integrated, high voltage, high current, 4-channel driver, you can use DC motors and power supplies of up to 36 Volts, the L293D chip is also known as a type of H-Bridge, which is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
2 interface for 5V Servo connected to the FOR Arduino 's high-resolution dedicated timer - no jitter.
Can drive 4 DC motors or 2 stepper motors or 2 Servo.
Up to 4 bi-directional DC motors with individual 8-bit speed selection.
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC.
Pull down resistors keep motors disabled during power-up.
2 external terminal power interface, for separate logic/motor supplies.
Tested compatible for Arduino Mega, Diecimila & Duemilanove.
Reset button.
Size:70*55mm
