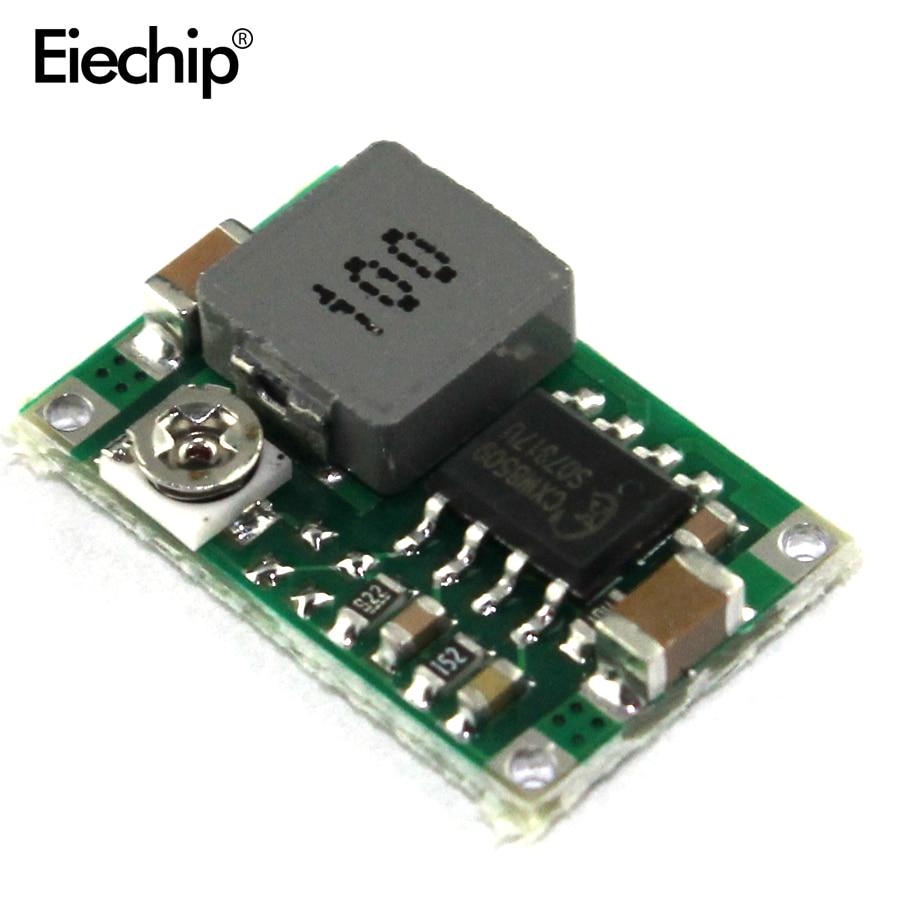

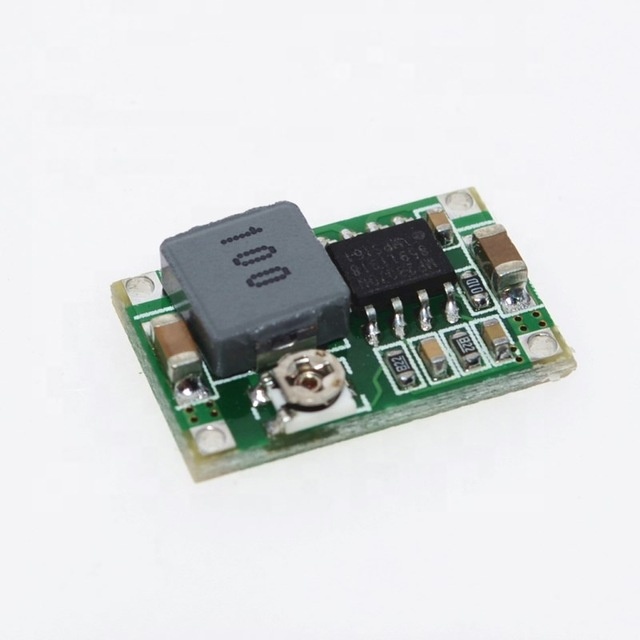

Step Down Module
Type: Mini-360
Non-isolated step-down
Synchronous rectification
Size: approx. 17 x 11 x 3.8mm
Input voltage: 4.75V-23V
Output voltage: 1.0V-17V
Current output: peak 3A, 1.8A long time
Transfer efficiency: 96% ( highest)
Switching frequency: 340KHz
Output ripple: 30mV(no-load)
Load regulation: ±0.5%
Voltage regulation: ±2.5%
Operating temperature: -40~+85
Color: show as pictures
Status: Stock Available
Regular Price: ৳65 BDT
Discount Price: ৳65 ৳200
Model NameMini-360 (ultra small size DC-DC synchronous rectifier buck module)
Module Properties Non-isolated buck
Input voltage 4.75V-23V
Output voltage1.0V-17V
Output Current Lowering the value of 3A, long 1.8A
Conversion efficiency96% (maximum)
Switching Frequency340KHz
Output ripple30mV (no-load)
Load regulation± 0.5%
Voltage regulation ± 2.5%
Working temperature-40 Celsiusto +85Celsius
FeaturesUse integrally moulded power inductor and synchronous rectifier control chip, smaller and more efficient.
