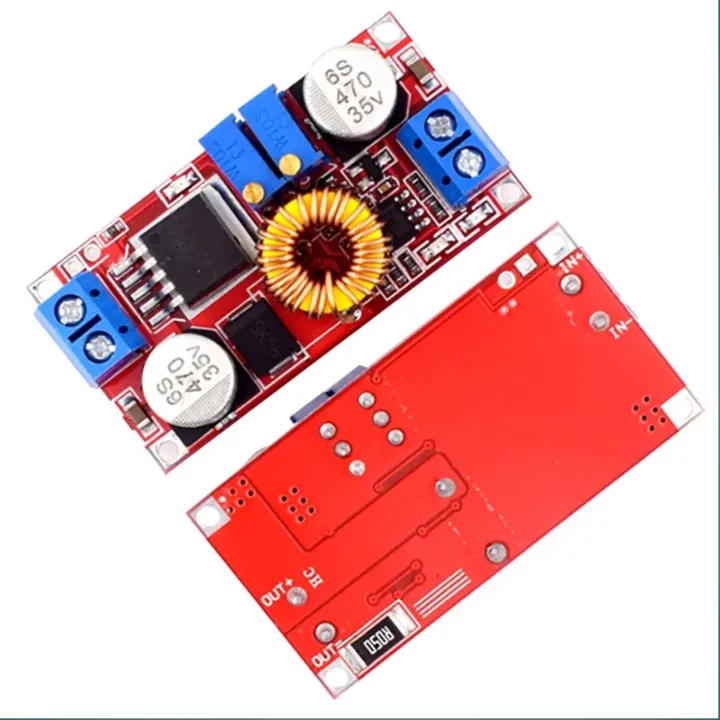

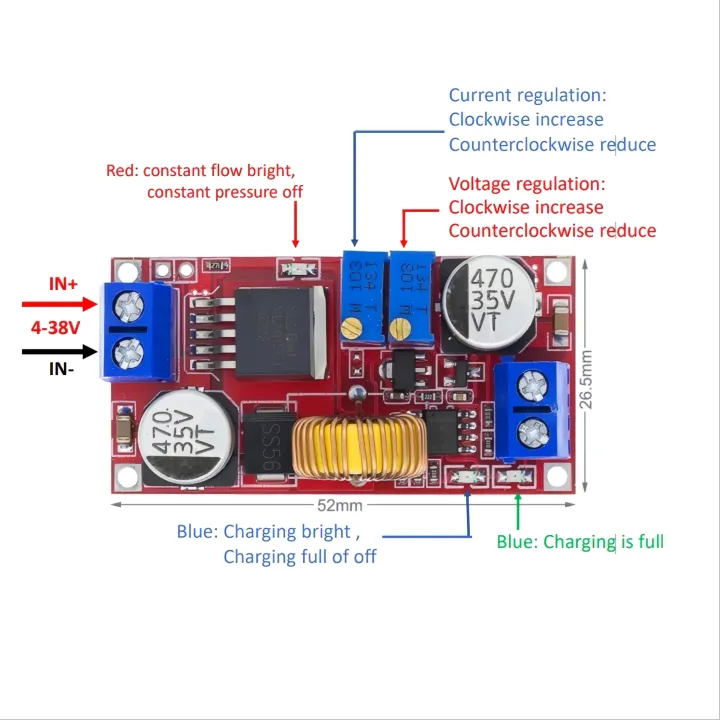

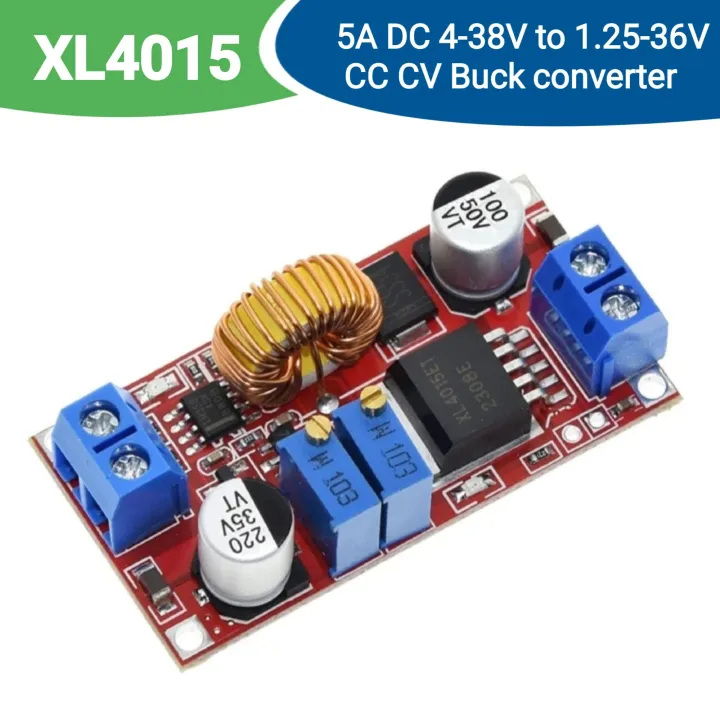

Xl4015 CC CV 5A Lithium Charger Board Adjustable 6-38V to 1.25-36v DC Step Down Power Supply Buck Module LED Driver Products

Switching frequency: 300KHz

Conversion efficiency: 95% (the highest)

Output current: adjustable maximum 5A

Output voltage: 0.8V-30V

Input voltage: 5V-32V

Status: Stock Available

Regular Price: ৳186 BDT

Discount Price: ৳186 ৳290

Specification

Xl4015 CC CV 5A Lithium Charger Board Adjustable 6-38V to 1.25-36v DC Step Down Power Supply Buck Module

Size: 51 * 26.3 * 14 (L * W * H) (mm)

Operating Temperature: -40 ° to +85 °

Voltage Regulation: ± 2.5%

Load Regulation: ± 0.5%

Output ripple: 50mV (max) 20M bandwidth

Switching frequency: 300KHz

Conversion efficiency: 95% (the highest)

Output current: adjustable maximum 5A

Output voltage: 0.8V-30V

Input voltage: 5V-32V
