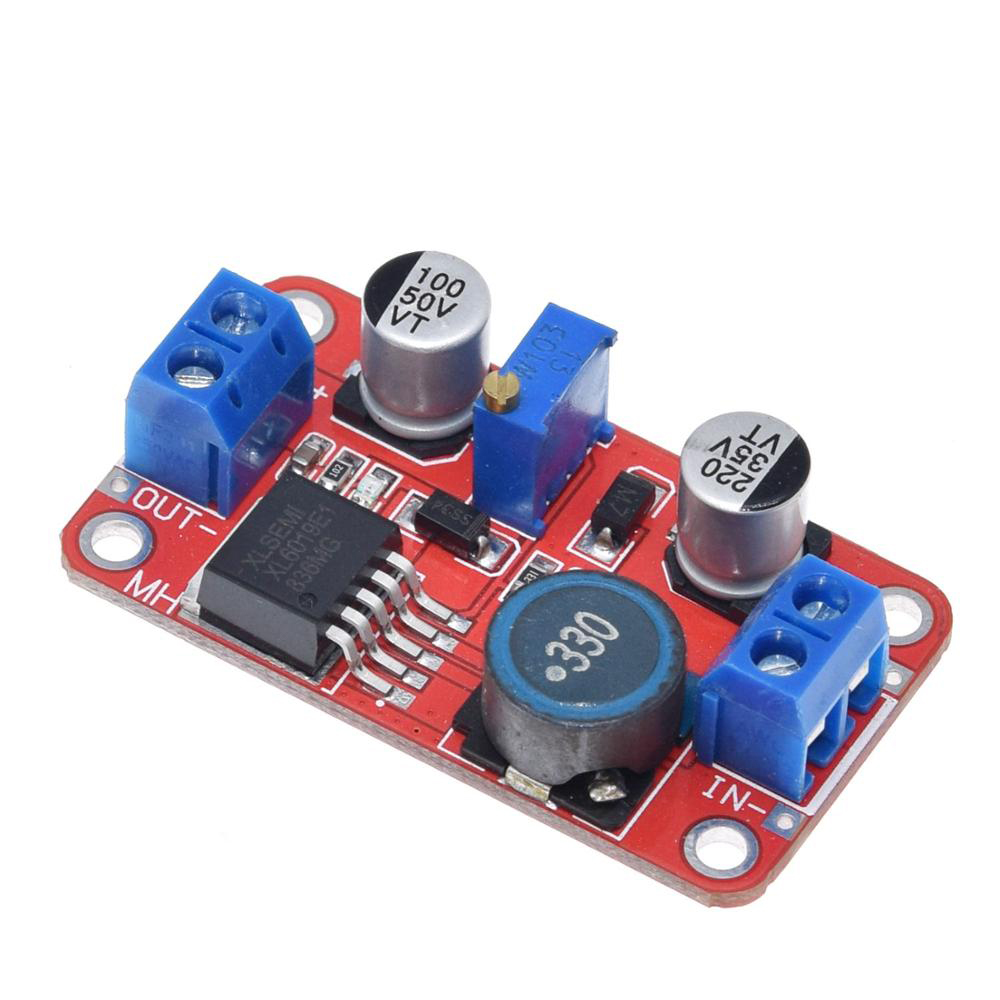

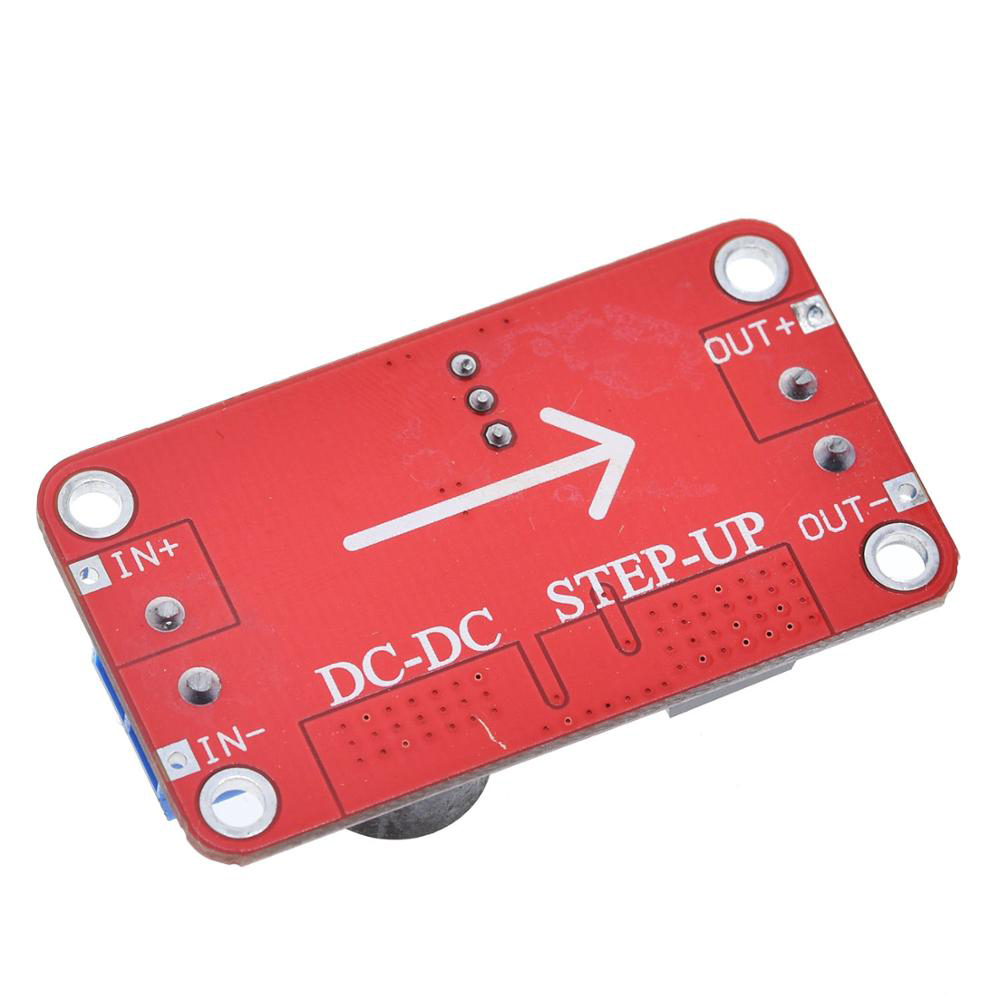

Model Specifications: XL6019 boost module

Module Properties: non-isolated step-up

Rectification: Non-Synchronous Rectification

Input range: Limits: 3-40V, recommended values: 3V-35V

Output Range: Limits: 5-45V, recommended values: 5V-40V (via rotary potentiometer)

Input Current: Limits: 0-5A, recommended values: 0-3A

Conversion efficiency: up to 94%

Open frequency: 220KHz, the second generation of switching power supply technology

Output ripple: less than 100mV

Load regulation: ± 0.5%

Voltage regulation: ± 0.5%

Working temperature: Limits: -40 to +150 degrees Celsius, the recommended values: -20 to +85 degrees Celsius

Reverse polarity protection: protection against reverse input 40V

Size: 50MM 28MM 13MM

With back protection, import TDK inductor, with a connecting column, the output 5V/12V/24V can be adjusted, performance beyond LM2577. Using conventional topology BOOST as a constant voltage output, the internal integration of MOSFET, peripheral devices, low system cost, built-in over temperature protection, over current protection of the full set of reliability protection circuit, high reliability.
